DAT ASSAWARI coastal minehunters (1997)

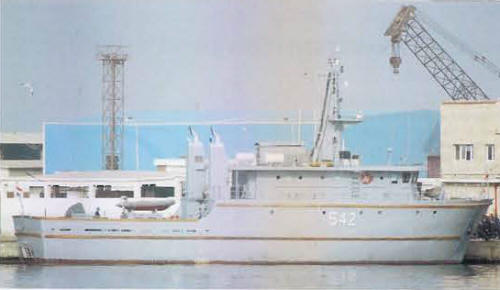

Dat Assawari 2006
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| ذات الصواري [Dat Assawari] | CMH1, 1990s- 542 | Swiftships, Morgan City, USA | 4.10.1993 | 13.7.1997 | in service (2019) | ||
| نافارين [Navarin] | CMH2, 1990s- 545 | Swiftships, Morgan City, USA | 13.11.1993 | 13.7.1997 | in service (2019) | ||
| البرلس [Burullus] | CMH3, 1990s- 548 | Swiftships, Morgan City, USA | 4.12.1993 | 13.7.1997 | in service (2019) |
Technical data
| Displacement standard, t | 178 |
|---|---|
| Displacement full, t | 203 |
| Length, m | 31.1 pp 33.5 oa |
| Breadth, m | 8.23 |
| Draught, m | 2.30 |
| No of shafts | 2 |
| Machinery | 2 MTU 12V183 TC82 diesels |
| Power, h. p. | 1035 |
| Max speed, kts | 12.5 |
| Fuel, t | diesel oil 23 |
| Endurance, nm(kts) | 2000(10) |
| Armament | 2 x 1 - 12.7/90, 2x Pluto USV, decompression chamber |
| Electronic equipment | Sperry Rastar radar, TSM2022 sonar, Paramax CCS |
| Complement | 25 |
Standard scale images
Burullus 2000
Graphics
Dat Assawari 2006
Project history
GRP hull, ordered in December 1990. Mine-countermeasure system Ibis V with 2 Pluto underwater vehicles.
Modernizations
None.
Naval service
No significant events.
