FIGHTING SHIPS OF THE WORLD
EGYPT
AMPHIBIOUS SHIPS AND CRAFT
No 21 swimmer delivery craft (1982-1983)
1999
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
No 21-30 |
Uniflite, Bellingham, USA: 21-30 |
1982-1983: 21-30 |
none | none | 1984-1990: 22, 24, 25, 29, 30 in service (2019): 21, 23, 26-28 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 11 |
| Length, m | 11.0 |
| Breadth, m | 3.00 |
| Draught, m | 0.84 |
| No of shafts | 2 |
| Machinery | 2 General Motors 6V92TA diesels |
| Power, h. p. | 900 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 200(20) |
| Armament | 2 x 1 - 12.7/90, 2 x 1 - 7.6/90 |
| Military load | 1 tank or 60 troops or 27 t of cargo |
| Electronic equipment | LN-66 radar |
| Complement | 4 |

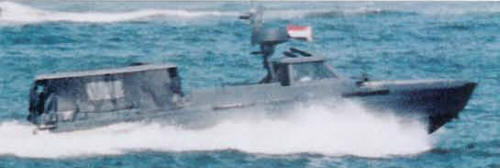

Graphics
1999
Project history
USN LCVPs of Sea Fox type. GRP hull.
Modernizations
None.
Naval service
No significant events.
