TIMSAH 1 patrol boats (1981-1992)

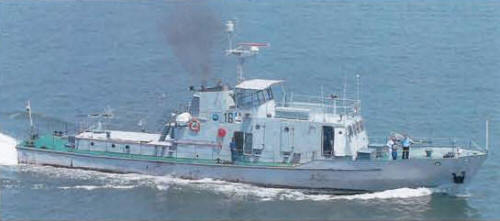

Timsah 16 2006

Ships


Name No Yard No Builder Laid down Launched Comp Fate
1 تمسه [Timsah 1] 01   Timsah SY, Alexandria 1.1.1980 11/1981 12/1981 in service (2019)
2 تمسه [Timsah 2] 02   Timsah SY, Alexandria     12/1981 in service (2019)
3 تمسه [Timsah 3] 03   Timsah SY, Alexandria     12/1981 lost late 1993
4 تمسه [Timsah 4] 04   Timsah SY, Alexandria     12/1982 in service (2019)
5 تمسه [Timsah 5] 05   Timsah SY, Alexandria     12/1982 in service (2019)
6 تمسه [Timsah 6] 06   Timsah SY, Alexandria     12/1982 in service (2019)
7 تمسه [Timsah 7] 07   Timsah SY, Alexandria     1988 in service (2019)
8 تمسه [Timsah 8] 08   Timsah SY, Alexandria     1988 in service (2019)
9 تمسه [Timsah 9] 09   Timsah SY, Alexandria     1988 in service (2019)
10 تمسه [Timsah 10] 10   Timsah SY, Alexandria     1989 in service (2019)
11 تمسه [Timsah 11] 11   Timsah SY, Alexandria     1989 in service (2019)
12 تمسه [Timsah 12] 12   Timsah SY, Alexandria     1989 in service (2019)
13 تمسه [Timsah 13] 13   Timsah SY, Alexandria     1992 in service (2019)
14 تمسه [Timsah 14] 14   Timsah SY, Alexandria     1992 in service (2019)
15 تمسه [Timsah 15] 15   Timsah SY, Alexandria     1992 in service (2019)
16 تمسه [Timsah 16] 16   Timsah SY, Alexandria     1992 in service (2019)


Technical data


Displacement standard, t
Displacement full, t105
Length, m

28.9 pp 31.0 oa

Breadth, m5.20
Draught, m1.48
No of shafts2
Machinery

2 MTU 8V331 TC92 diesels

Power, h. p.1770
Max speed, kts25
Fuel, t

diesel oil

Endurance, nm(kts)600(18)
Armament1 x 1 - 20/70 A41A (earlier) or 1 x 1 - 20/90 GAM-B01 (later)
Electronic equipmentDecca radar
Complement13


Graphics


<i>Timsah 16 </i>2006
Timsah 16 2006


Project history

Domestic design.

Modernizations

None.

Naval service

No significant events.
