No90 patrol boats (2006-2007)





90 2006

Ships


Name No Yard No Builder Laid down Launched Comp Fate
  90   Swiftships, Morgan City, USA     2006 in service (2019)
  91   Swiftships, Morgan City, USA     2006 in service (2019)
  92   Swiftships, Morgan City, USA     2006 in service (2019)
  93   Swiftships, Morgan City, USA     2007 in service (2019)
  94   Swiftships, Morgan City, USA     2007 in service (2019)
  95   Swiftships, Morgan City, USA     2007 in service (2019)


Technical data


Displacement standard, t



Displacement full, t

116

Length, m

26.1

Breadth, m

6.10

Draught, m

1.50

No of shafts

2 waterjets

Machinery

2 Caterpillar 3512B diesels

Power, h. p.
Max speed, kts

40

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

2 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90

Electronic equipment

radar

Complement

12



Graphics

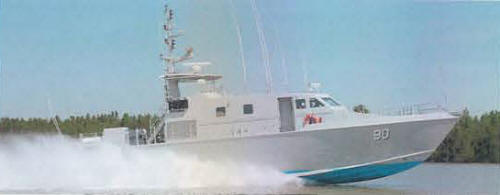

<i>90 </i>2006
90 2006


Project history

Swiftships Protector design.

Modernizations

None.

Naval service

No significant events.
