No71 patrol launches (1995)





No 72 under US flag 1994

Ships


Names Builders Commissioned Losses Transfers Discarding

71 - 79

Peterson Bldrs, Sturgeon Bay, USA: 71-79

6.1995: 71-79

none

none

in service (2019): 71-79



Technical data


Displacement standard, t
Displacement full, t18
Length, m

13.9

Breadth, m3.96
Draught, m0.86
No of shafts2 waterjets
Machinery

2 MTU 8V183 TE92 diesels

Power, h. p.1300
Max speed, kts34
Fuel, t

diesel oil 1.5

Endurance, nm(kts)200(30)
Armament2 x 1 - 12.7/90
Electronic equipmentRaytheon 40X radar
Complement4


Graphics

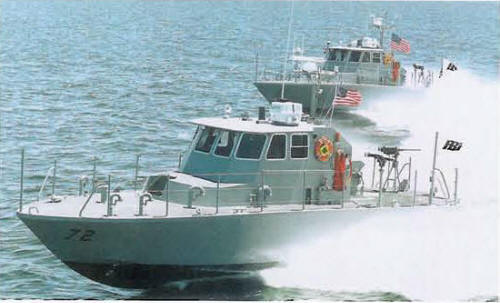

<i>No 72 </i>under US flag 1994
No 72 under US flag 1994


Project history

Peterson 45ft design.

Modernizations

None.

Naval service

No significant events.
