AL NOUR patrol craft (1983-1984)
Al Wakil 2007
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| النور [Al Nour] | 430 | China | 23.10.1983 | in service (2019) | |||
| الهادي [Al Hadi] | 433 | China | 23.10.1984 | in service (2019) | |||
| الكريم [Al Hakim] | 436 | China | 21.5.1984 | in service (2019) | |||
| الوكيل [Al Wakil] | 439 | China | 21.5.1984 | in service (2019) | |||
| القادر [Al Qatar] | 442 | China | 21.5.1984 | in service (2019) | |||
| الصمد [Al Saddam] | 445 | China | 6.1984 | in service (2019) | |||
| السلام [Al Salam] | 448 | China | 6.1984 | in service (2019) | |||
| الرفيع [Al Rafia] | 451 | China | 6.1984 | in service (2019) |
Technical data
| Displacement standard, t | 375 |
|---|---|
| Displacement full, t | 400 |
| Length, m | 58.8 |
| Breadth, m | 7.20 |
| Draught, m | 2.20 |
| No of shafts | 4 |
| Machinery | 4 9D-8 diesels |
| Power, h. p. | 8800 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2000(14) |
| Armament | 2 x 2 - 57/62 type 66, 2 x 2 - 25/80 type 61M, 4 x 5 type 81 ASWRL, 2 DCT, 2 DCR, mines |
| Electronic equipment | Type 351 radar, Tamir-11 sonar |
| Complement | 70 |
Standard scale images
Al Nour 2000
Graphics

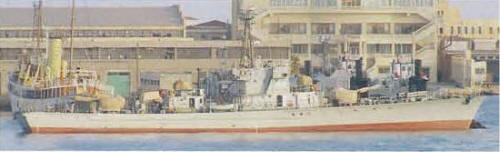

Al Wakil 2007
Project history
Chinese Type 037.
Modernizations
2000s, two craft: - Tamir-11 sonar; + 2 x 3 - 324 Mk 32 TT, new US-made sonar
2010s, all: - 2 x 2 - 25/80; + 2 x 2 - 23/81 type 61M, Decca radar
Naval service
No significant events.
