No793 patrol craft (1984)

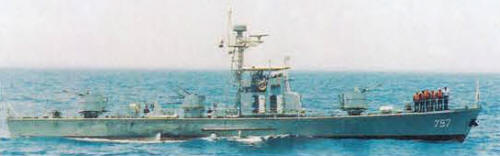

No 797 1997

Ships


Name No Yard No Builder Laid down Launched Comp Fate
  793   China     1984 in service (2019)
  795   China     1984 in service (2019)
  797   China     1984 in service (2019)
  799   China     1984 in service (2019)


Technical data


Displacement standard, t

122

Displacement full, t

135

Length, m

38.8

Breadth, m

5.41

Draught, m

1.55

No of shafts

4

Machinery

2 M-50F-4 diesels, 2 12D6 diesels

Power, h. p.

4200 (2x1200+2x910)

Max speed, kts

28

Fuel, t

diesel oil

Endurance, nm(kts)

750(16.5)

Armament

2 x 2 - 37/63 type 61, 2 x 2 - 25/80 type 61M

Electronic equipment

Type 351 radar

Complement

36



Standard scale images


<i>No793 </i>2000
No793 2000


Graphics


<i>No 797 </i>1997
No 797 1997


Project history

Chinese Type 062.

Modernizations

2000s, all: - 2 x 2 - 25/80; + 2 x 2 - 23/81 type 61M

Naval service

No significant events.
