CINCO DE JUNIO patrol ship (1943/1943)
El Oro
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Cinco de Junio, 1949- El Oro (ex-APc85) | Herreshoff, Bristol, USA | 1943 | 1943 // 1943 | stricken mid-1960s |
Technical data
| Displacement standard, t | 100 |
|---|---|
| Displacement full, t | 234 |
| Length, m | 31.4 |
| Breadth, m | 6.48 |
| Draught, m | 2.82 |
| No of shafts | 1 |
| Machinery | 1 National Supply Co diesel |
| Power, h. p. | 400 |
| Max speed, kts | 10 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 4 x 1 - 20/70 Mk 4 |
| Military load | 66 troops |
| Complement | 25 |
Standard scale images

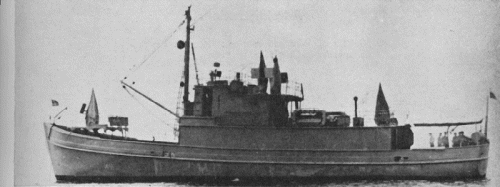

El Oro 1954
Graphics
El Oro
Project history
Coastal personnel transport APC85 was transferred in 1943 by lend-lease from US Navy and commissioned by Ecuadorian Navy as Cinco de Junio.
Modernizations
None.
Naval service
No significant events.
