LSP1 patrol launches (1954-1955)
1963
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
LSP1, 1970- LP81 10 de Agosto, 1978- Babahoyo LSP2, 1970- LP82 9 de Octubre, 1978- Pichincha LSP3, 1970- LP83 3 de Novembre, 1978- Portoviejo LSP4, 1970- LP84 LSP5, 1970- LP85 LSP6, 1970- LP86 |
Havighorst, Bremen-Blumentahl, West Germany: LSP1-6 |
1954-1955: LSP1-6 |
none |
none |
1976: LP84-86 1990s: LP81-83 |
Technical data
| Displacement standard, t | 45 |
|---|---|
| Displacement full, t | 64 |
| Length, m | 23.4 |
| Breadth, m | 4.60 |
| Draught, m | 1.80 |
| No of shafts | 2 |
| Machinery | 2 Bohn & Kähler diesels |
| Power, h. p. | 1200 |
| Max speed, kts | 22 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 550(16) |
| Armament | light arms |
| Electronic equipment | none |
| Complement | 9 |
Standard scale images
LSP1 1960
Graphics

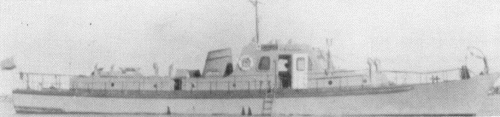

1963
Project history
Small patrol boats.
Modernizations
None.
Naval service
No significant events.
