Isla Santa Rosa 2002

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate

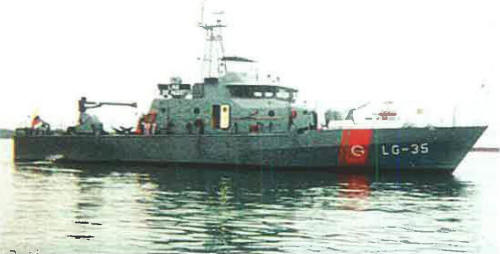

5 de Agosto, 2007- Isla Santa Rosa	LG35		Moss Point Marine, Escatawpa, USA			5.1991	Coast Guard, in service (2019)
27 de Febrero, 2007- Isla Puná	LG36		Moss Point Marine, Escatawpa, USA			11.1991	Coast Guard, in service (2019)

Technical data

Displacement standard, t	120
Displacement full, t	190
Length, m	31.6 pp 34.1 oa
Breadth, m	6.86
Draught, m	2.14
No of shafts	3
Machinery	2 General Motors Detroit Diesel 16V149MTI diesels + 1 General Motors Detroit Diesel 16V92TAB diesel
Power, h. p.	2560 + 860 = 3420
Max speed, kts	27
Fuel, t	diesel oil
Endurance, nm(kts)	1500(13)
Armament	1 x 1 - 40/60 Mk 3, 2 x 1 - 12.7/90
Electronic equipment	Decca TM1226 radar
Complement	19

Graphics

Project history

Built under U.S. Foreign Military Sales program for Galapagos Islands service. Carry a 10-person rigid inflatable inspection boat.

Modernizations

2007-2008, both: - 1 x 1 - 40/60, Decca TM1226 radar; + 1 x 1 - 20/90 GAM-B01, Furuno radar

Naval service

No significant events.
