NAVYPEDIA

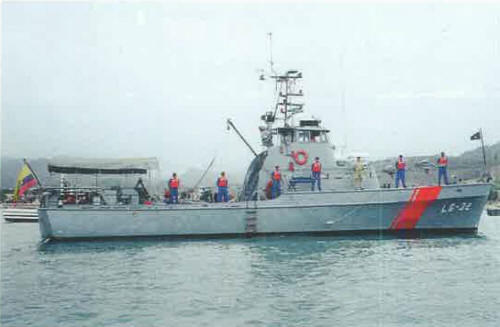

Isla Seymour 2001

Ships

Names	Builders	Completed	Losses	Transfers	Discarding
LG32 24 de Mayo (ex-Point Richmond), 2007- LG32 Isla Seymour	Martinac SB, Tacoma, USA: LG32	1967 // 1998: LG32	none	none	in service (2019): LG32

Technical data

Displacement standard, t	64
Displacement full, t	69
Length, m	25.3
Breadth, m	5.25
Draught, m	1.95
No of shafts	2
Machinery	2 Cummins VT-12-M diesels
Power, h. p.	1600
Max speed, kts	23
Fuel, t	diesel oil
Endurance, nm(kts)	1500(8)
Armament	2 x 1 - 12.7/90
Electronic equipment	SPS-64(v)1 radar
Complement	8

Standard scale images

Graphics

Project history

Former USCG Point class boat.

Modernizations

None.

Naval service

No significant events.
