RESTAURACIÓN large patrol craft (1931-1933/1948)

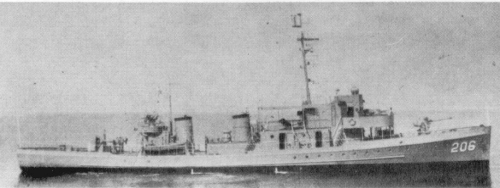

Restauración 1977

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Restauración (ex-Galatea) P104, 1968- P206   John Mathis, Camden, USA   17.12.1932 2.1933 // 7.1948 deleted 1993
Independencia (ex-Icarus) P105, 1968- P204   Bath Iron Wks, USA 1.1931 19.3.1932 4.1932 // 7.1948 deleted 1993
Rafael Atoa (ex-Thetis), 1962- Libertad P106, 1968- P205   Bath Iron Wks, USA 1.1931 9.11.1931 12.1931 // 7.1948 deleted 1993


Technical data


Displacement standard, t334 trials
Displacement full, t370
Length, m

49.0 wl 50.3 oa

Breadth, m

7.24

Draught, m

2.34 trials

No of shafts2
Machinery

2 Winton diesels

Power, h. p.1340
Max speed, kts

16

Fuel, t

diesel oil 25

Endurance, nm(kts)1600 (13)
Armament

1 x 1 - 76/50 Mk 21, 1 x 1 - 40/60 Mk 3, 1 x 1 - 20/70 Mk 10

Electronic equipmentnav. radar
Complement

40



Standard scale images


<i>Independencia </i>1965
Independencia 1965


Graphics


<i>Restauración </i>1977
Restauración 1977


Project history

Former USCG 165ft cutters (Argo or 'B' class).

Modernizations

late 1960s-early 1970s, all: re-engined (1280hp, 14kts)

Naval service

No significant events.
