GENERALISSIMO destroyer (1935/1949)





Sanchez

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Generalissimo (ex-Fame), 1962- Sanchez D102   Vickers-Armstrong, Tyne, UK 5.7.1933 28.6.1934 4/1935 // 2.1949 discarded 1968


Technical data


Displacement standard, t

1405

Displacement full, t

2095

Length, m

97.0 pp 100.3 oa

Breadth, m

10.1

Draught, m

4.01

No of shafts

2

Machinery

2 sets Parsons geared steam turbines, 3 Admiralty 3-drum boilers

Power, h. p.

36000

Max speed, kts

36

Fuel, t

oil 471

Endurance, nm(kts)6350(15)
Armament

4 x 1 - 120/45 CP Mk XVII, 2 x 2 - 20/70 Mk V, 2 x 1 - 20/70 Mk III, 4 DCT, 1 DCR (70 DC)

Electronic equipmenttype 271, type 291 radars, type 144 sonar
Complement

145



Standard scale images

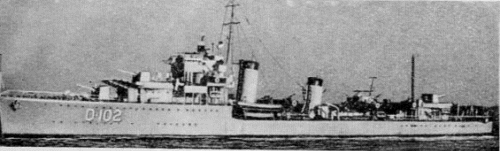

<i>Generalissimo </i>1953
Generalissimo 1953


Graphics


<i>Sanchez</i>
Sanchez


Project history Former British 'F' class destroyer. Modernizations

Former British 'F' class destroyer. Modernizations: None.

Naval service

No significant events.
