MØEN gunboat (1875)
-92-1993.jpg)

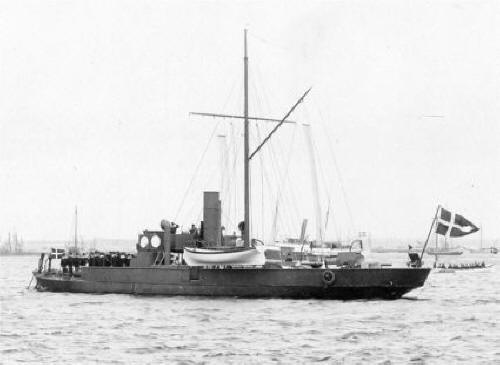

Møen
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Møen | Orlogsværftets, København | 24.2.1875 | 1875 | stricken 9.1901 |
Technical data
| Displacement normal, t | 409 |
|---|---|
| Displacement full, t | |
| Length, m | 34.3 |
| Breadth, m | 8.84 |
| Draught, m | 2.64 |
| No of shafts | 1 |
| Machinery | |
| Power, h. p. | 523 |
| Max speed, kts | 9 |
| Fuel, t | coal 20 |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 254/18 M.1875, 2 x 1 - 84/13 M.1872 |
| Complement | 35 |
Standard scale images
similar Falster 1915
Graphics
Møen
Project history
Iron-hulled gunboat of Rendell type.
Modernizations
1890s: - 2 x 1 - 84/13; + 6 x 5 - 37/17 M.1875
Naval service
No significant events.
