GRØNSUND gunboats (1883 - 1885)
Guldborgsund
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Grønsund | Orlogsværftets, København | 11.1882 | 18.4.1883 | 1883 | depot ship 1917 | ||
| Guldborgsund | Orlogsværftets, København | 30.8.1884 | 1885 | stricken 12.1922 |
Technical data
| Displacement normal, t | Grønsund: 243 Guldborgsund: 264 |
|---|---|
| Displacement full, t | Grønsund: 247 Guldborgsund: 268 |
| Length, m | 36.3 |
| Breadth, m | 6.12 |
| Draught, m | 2.48 |
| No of shafts | 1 |
| Machinery |
|
| Power, h. p. | Grønsund: 300 Guldborgsund: 400 |
| Max speed, kts | Grønsund: 10 Guldborgsund: 10.5 |
| Fuel, t | coal |
| Endurance, nm(kts) | |
| Armament | Grønsund: 2 x 1 - 120/22 RK L/25 C/79, 2 x 5 - 37/17 M.1875 Guldborgsund: 2 x 1 - 47/40 M.1885 |
| Complement | Grønsund: 49 Guldborgsund: 46 |
Graphics

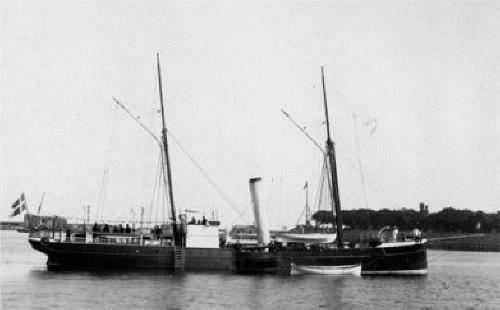

Guldborgsund
Project history
Steel-hulled gunboats, mostly used for fishery protection.
Modernizations
late 1880s, Grønsund: - 2 x 1 - 120/22; + 2 x 1 - 57/40 M.1885
Naval service
No significant events.
