FYLLA gunboats (1863 - 1864)





Fylla

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Fylla     Orlogsværftets, København   1.7.1862 1863 stricken 9.1894
Diana     Orlogsværftets, København   11.11.1863 1864 TS 1896, stricken 12.1903


Technical data


Displacement normal, t

550

Displacement full, t560
Length, m

47.8

Breadth, m7.90
Draught, m3.10
No of shafts1
Machinery
Power, h. p.500
Max speed, kts

9.7

Fuel, t

coal 60

Endurance, nm(kts)
Armament

Fylla: 1 x 1 - 202/12.6 60pdr 88cwt 4.321 Ton M1860 Finspång shell SB, 2 x 1 - 167/15.9 30pdr 60cwt SB

Diana: 1 x 1 - 202/12.6 60pdr 88cwt 4.321 Ton M1860 Finspång shell SB, 2 x 1 - 143/14.1 18pdr 40cwt 1.964 Ton MLR

Complement

58



Graphics

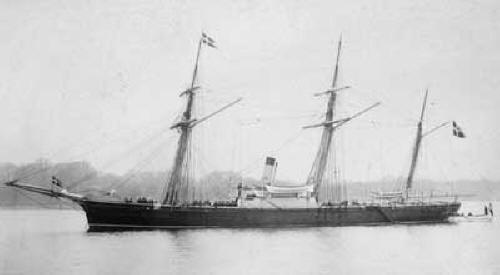

<i>Fylla</i>
Fylla


Project history

Wooden-hulled gunboats.

Modernizations

1864, Fylla: - 2 x 1 - 167/15.9; + 2 x 1 - 43/14.1 18pdr 40cwt 1.964 Ton MLR

1870s, both: - 1 x 1 - 202/12.6; + 1 x 1 - 43/14.1 18pdr 40cwt 1.964 Ton MLR

1880s, both: - 3 x 1 - 143/14.1; + 6 x 1 - 75/32 RK L/35, 2 x 5 - 37/17 M.1875

1896, Diana: was armed only with 2 x 1 - 37/20 M.1875

Naval service

No significant events.

Many Thanks to Kent Crawford for unique correction of information about ships' guns on this page.
