MSF1 drone minesweepers (1998 - 1999)

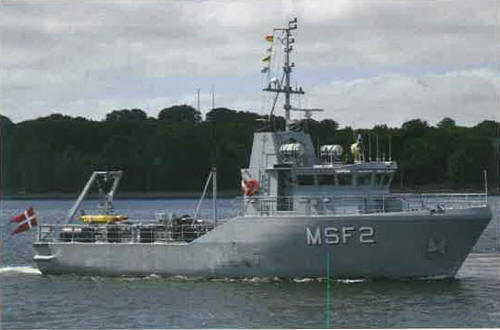

MSF2 2014
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| MSF1 | Danyard, Aalborg | 1998 | in service (2019) | ||||
| MSF2 | Danyard, Aalborg | 1998 | in service (2019) | ||||
| MSF3 | Danyard, Aalborg | 1/1999 | in service (2019) | ||||
| MSF4 | Danyard, Aalborg | 1/1999 | in service (2019) |
Technical data
| Displacement standard, t | 102 |
|---|---|
| Displacement full, t | 125 |
| Length, m | 23.9 pp 26.5 oa |
| Breadth, m | 7.00 |
| Draught, m | 2.20 |
| No of shafts | 2 azimutal waterjets |
| Machinery | 2 Scania DSI14.74M diesels |
| Power, h. p. | 500 |
| Max speed, kts | 12 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 420(10) |
| Armament | Double Eagle USV, Dyad magnetic minesweeping gear |
| Electronic equipment | Furuno 2117 radar, TSM2054 sonar |
| Complement | 8 / 0 |
Graphics
MSF2 2014
Project history
Drone minesweepers. MRD-STOR project. GRP construction. Can be operated by crew as inshore minehunters/minesweepers or by remote control in pairs by other craft.
Modernizations
2003, all: + AN37U-1 mechanical minesweeping gear
Naval service
No significant events.
