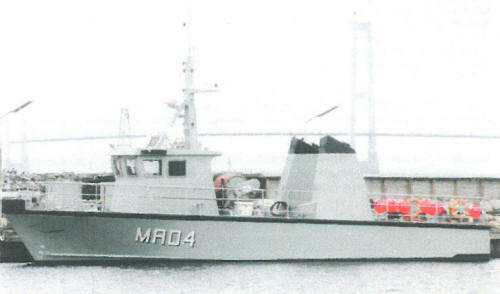

MRD4 2002

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
MRD1-6	Danyard, Aalborg:MRD1-6	1991: MRD1, 2 1995: MRD3, 4 1996: MRD5, 6	none	none	2009: MRD1, 2, 5, 6 2010: MRD3, 4

Technical data

Displacement standard, t	32
Displacement full, t	38
Length, m	16.9 wl 18.2 oa
Breadth, m	4.75
Draught, m	1.20
No of shafts	2 azimutal waterjets
Machinery	2 General Motors Detroit Diesel diesel
Power, h. p.	350
Max speed, kts	12
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	Mini-Dyad magnetic minesweeping gear
Electronic equipment	Furuno radar, TSM2054 sonar
Complement	4 / 0

Graphics

Project history

Drone minesweepers. Intended to operate two per one Standard 300 multipurpose combatant. GRP foam-core hull.

Modernizations

None.

Naval service

No significant events.
