LINDORMEN minelayers (1978)

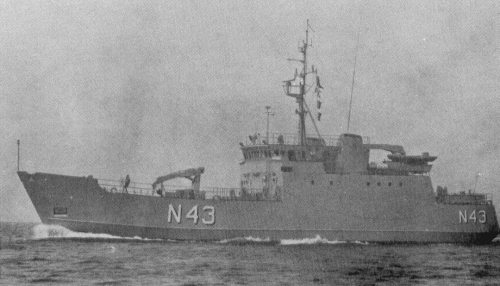

Lindormen 1978
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Lindormen | N43 | Svendborg Værft | 2.2.1977 | 7.6.1977 | 16.2.1978 | stricken 10.2004, to Estonia (Tasuja) | |
| Lossen | N44 | Svendborg Værft | 9.7.1977 | 11.10.1977 | 14.6.1978 | stricken 10.2004, to Estonia (Wambola) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 575 |
| Length, m | 40.0 pp 43.3 oa |
| Breadth, m | 9.00 |
| Draught, m | 2.65 |
| No of shafts | 2 |
| Machinery | 2 Frichs-Wichmann 7AX diesels |
| Power, h. p. | 4200 |
| Max speed, kts | 14 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 3 x 1 - 20/70 Mk 10, 60 mines |
| Electronic equipment | NWS-3 radar |
| Complement | 27 |
Standard scale images
Lindormen 2000
Graphics
Lindormen 1978
Project history
Controlled minefield planters. Had a single door at the stern.
Modernizations
None.
Naval service
No significant events.
