LANGELAND minelayer (1951)

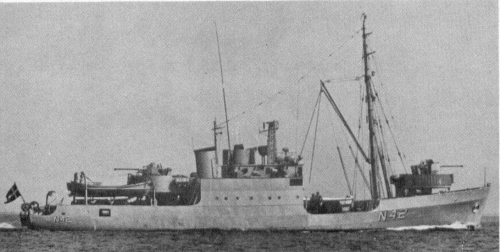

Langeland 1978 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Langeland MF5, 4.1951- N42 184 Orlogsværftets, København 12.1949 17.5.1950 1.1951 stricken 1.1987


Technical data


Displacement standard, t310
Displacement full, t330
Length, m

41.0 pp 44.0 oa

Breadth, m

7.20

Draught, m

2.20

No of shafts

2

Machinery

2 Burmeister & Wain diesels

Power, h. p.

770

Max speed, kts

12

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

2 x 1 - 40/70 Bofors 315, 2 x 1 - 20/70 Mk 7, mines

Electronic equipmentradar
Complement

37



Standard scale images


<i>Langeland</i> 1955
Langeland 1955


Graphics


<i>Langeland</i> 1978 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Langeland 1978 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Layer of controlled minefields.

Modernizations

None.

Naval service

No significant events.
