SØRIDDEREN torpedo boats (1911)

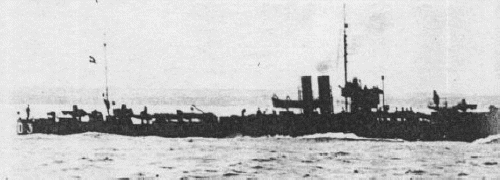

Søulven 1911 Many thanks to Wolfgang Stöhr for additional information on this page.
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Søridderen | 1920- 16, 1923- D1, 1929- O1 | 1283 | Yarrow, Glasgow, UK | 1910 | 1911 | 1911 | stricken 1937 |
| Søulven | 1920- 14, 1923- D3, 1929- O3 | 274 | Burmeister & Wain, København | 1910 | 1911 | 1911 | stricken 1937 |
| Flyvefisken | 1920- 15, 1923- D2, 1929- O2 | 275 | Burmeister & Wain, København | 1910 | 1911 | 1911 | stricken 1937 |
Technical data
| Displacement normal, t | 240 |
|---|---|
| Displacement full, t | 295 |
| Length, m | 55.4 |
| Breadth, m | 5.49 |
| Draught, m | 1.95 |
| No of shafts | 1 |
| Machinery | Søridderen: 1 Curtis steam turbine, 2 Yarrow boilers Flyvefisken, Søulven: 1 Burmeister & Wain steam turbine, 2 Yarrow boilers |
| Power, h. p. | 5000 |
| Max speed, kts | 27.5 |
| Fuel, t | coal |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 75/52 M.07, 1 - 450 TT (bow), 4 x 1 - 450 TT |
| Complement | 33 |
Standard scale images
Flyvefisken 1914
Graphics
Søulven 1911 Many thanks to Wolfgang Stöhr for additional information on this page.
Project history
Ordered under one technical design together with Tumleren class. Design has appeared successful: British-designed ships were more seaworthy than German-built opponents. However further building of similar ships was refused for financial reasons.
Modernizations
None.
Naval service
No significant events.
