DELFINEN 1st class torpedo boat (1883)





Delfinen

Ships


Names Builders Commissioned Losses Transfers Discarding

Delfinen, 1912- T4, 1916- P2

Thornycroft, Chiswick, UK: Delfinen

8/1883: Delfinen

no

no

3/1919: T4



Technical data


Displacement normal, t
Displacement full, t66
Length, m

33.6

Breadth, m3.64
Draught, m0.69
No of shafts

1

Machinery

1 VC, 1 locomotive boiler

Power, h. p.

670

Max speed, kts

17

Fuel, t

coal

Endurance, nm(kts)
Armament

1 x 5 - 37/17 M.1875, 2 - 381 TT (bow)

Complement

15



Standard scale images


similar <i>Sværdfisken </i>1882
similar Sværdfisken 1882


Graphics

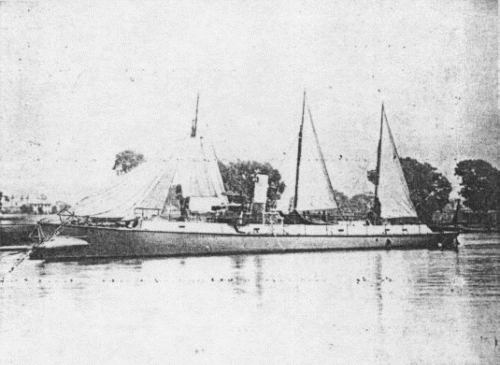

<i>Delfinen</i>
Delfinen


Project history

Thornycroft-built TB.

Modernizations

None.

Naval service

No significant events.
