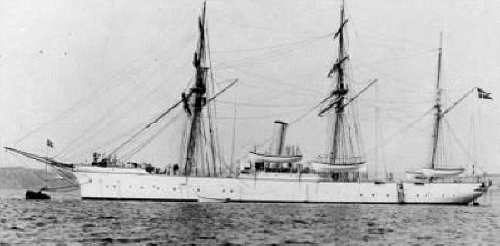

Ingolf

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Ingolf			Orlogsværftet, København	1875	1.9.1876	1878	stricken 10.1926

Technical data

Displacement normal, t	996
Displacement full, t	1012
Length, m	63.9
Breadth, m	8.53
Draught, m	4.16
No of shafts	1
Machinery
Power, h. p.	630
Max speed, kts	10.2
Fuel, t	coal
Endurance, nm(kts)	2800(8)
Armament	3 x 1 - 149/22 RK L/25 C/78
Complement	156

Graphics

Project history

Unprotected screw sloop, rated in Dutch Navy as corvette. In 1885 she was reclassified to 3rd class cruiser and in 1896 to TS.

Modernizations

1878: + 2 x 5 - 37/17 M.1875

1885: - 1 x 1 - 149/22; + 4 x 1 - 87/21 RK L/24 C/80

1893: - 2 x 1 - 149/22, 4 x 1 - 87/21; + 4 x 1 - 120/38 SK L/40 C/92, 2 x 5 - 37/17 M.1875

1906: - 2 x 1 - 120/38; + 2 x 1 - 57/40 M.1885

1910: - 2 x 1 - 120/38, 4 x 5 - 37/17; + 2 x 1 - 57/40 M.1885, 5 x 1 - 8.80

Naval service

No significant events.
