MHV20 Home Guard boats (1974-1981)





MHV21 1979

Ships


Names Builders Commissioned Losses Transfers Discarding

MHV20, 1988- MHV20 Baunen

MHV21, 1988- MHV21 Budstikken

MHV22, 1988- MHV22 Kureren

MHV23, 1988- MHV23 Partisan

MHV24, 1988- MHV24 Patrioten

MHV25, 1988- MHV25 Sabatøren

Elvinds, Svendborg: MHV20-25

1974-1981: MHV20-25

no

no

1997: MHV20

1999: MHV21

2000: MHV22, 24

2001: MHV23, 25



Technical data


Displacement standard, t
Displacement full, t60
Length, m

16.5

Breadth, m

4.20

Draught, m

2.00

No of shafts

2

Machinery

2 MTU diesels

Power, h. p.

500

Max speed, kts

15

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

2 x 1 - 7.6/92

Electronic equipmentTerma 9T48/9 radar
Complement

9



Graphics

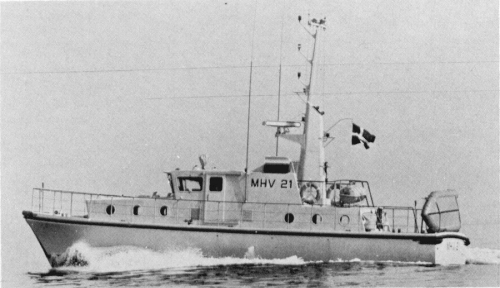

<i>MHV21</i> 1979
MHV21 1979


Project history

Patrol boats for the Naval Home Guard. GRP hull.

Modernizations

None.

Naval service

No significant events.
