Y375 patrol launches (1974)
Y376 1978
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Y375, 376 |
Botved, København: Y375, 376 |
1974: Y375, 376 |
Y375 (fire 27.5.1995) |
no |
1995: Y376 |
Technical data
| Displacement standard, t |
|
|---|---|
| Displacement full, t | 12 |
| Length, m | Y375: 14.0 Y376: 13.3 |
| Breadth, m | 4.50 |
| Draught, m | 1.10 |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | 680 |
| Max speed, kts | 26 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 7.6/90 |
| Electronic equipment | NWS-3 radar |
| Complement |
Graphics

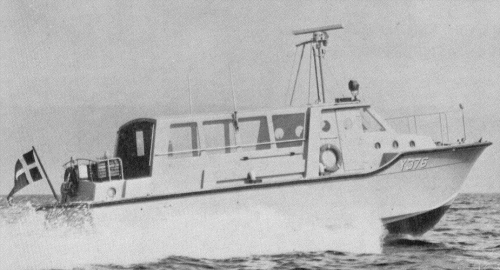

Y376 1978
Project history
Had facilities for combat swimmers.
Modernizations
None.
Naval service
No significant events.
