AGDLEK patrol craft (1974-1979)

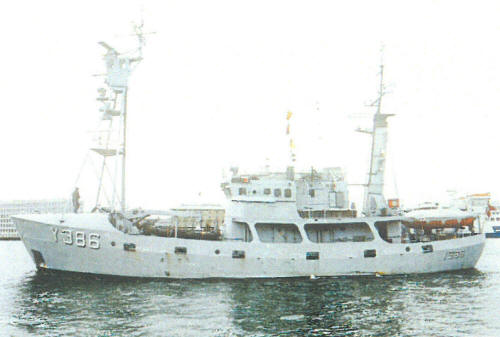

Agdlek 2002

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Agdlek Y386   Svendborg Vaerft   30.9.1973 12.3.1974 stricken 4.2008
Agpa Y387   Svendborg Vaerft   15.3.1974 14.5.1974 stricken 3.2009
Tulugaq Y388   Svendborg Vaerft   20.10.1978 26.6.1979 stricken 12.2017


Technical data


Displacement standard, t



Displacement full, t

Y386, 387: 300

Y388: 330

Length, m

Y386, 387: 31.4

Y388: 31.7

Breadth, m

7.70

Draught, m

3.60

No of shafts

1

Machinery

1 Burmeister & Wain Alpha A08-26VO diesel

Power, h. p.

800

Max speed, kts

Y386, 387: 12

Y388: 14

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

2 x 1 - 20/70 Mk 7

Electronic equipment

Y386, 387: Terma 20T48, Scanter Mil 009 radars

Y388: Scanter Mil 009 radar

Complement

15



Standard scale images


<i>Tulugaq </i>2000
Tulugaq 2000


Graphics


<i>Agdlek </i>2002
Agdlek 2002


Project history

Built for service in Greenland waters. Can carry two survey launches.

Modernizations

mid-1990s, all: - 2 x 1 - 20/70; + 2 x 1 - 12.7/90, FR-1505 radar

Naval service

No significant events.
