FIGHTING SHIPS OF THE WORLD
CUBA
COAST GUARD SHIPS
801 patrol craft (1985)
1990
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 801 | 194 | Almaz, Leningrad, USSR | 1984 // 2.1985 | in service (2019) | |||
| 816 | 195 | Almaz, Leningrad, USSR | 1984 // 2.1985 | in service (2019) | |||
| 825 | 198 | Almaz, Leningrad, USSR | 1985 // 8.1985 | stricken 2000 |
Technical data
| Displacement standard, t | 211 |
|---|---|
| Displacement full, t | 245 |
| Length, m | 40.0 |
| Breadth, m | 7.91 |
| Draught, m | 1.96 |
| No of shafts | 3 |
| Machinery | 3 M-504B diesels |
| Power, h. p. | 15000 |
| Max speed, kts | 36 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1910(11) |
| Armament | 2 x 2 - 30/71 AK-230, 2 DCR (12) |
| Electronic equipment | MR-220 Reyd, Ksenon radars, MG-11 sonar |
| Complement | 22 |
Standard scale images

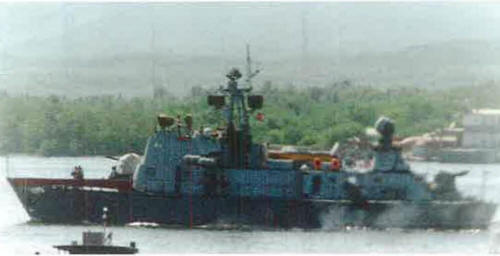

801 1990
Graphics
1990
Project history
Soviet project 02059 built for export.
Modernizations
None.
Naval service
No significant events.
