CUBA
COASTAL FORCES
88 fast attack craft (torpedo) (1949-1960/1962)

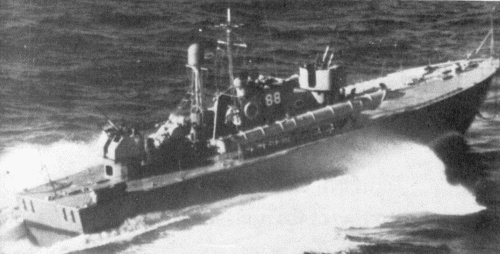

No 88 1970
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
12 boats (ex-TK-61, 1331, 1341, 1346, 1347, 1349, 1350, 1384, 1385 and others): 88, later 151 11 others |
5 Yd, Leningrad, USSR and/or 640 Yd, Sosnovka, USSR: 12 boats |
1949-1960 // 1962: 12 boats |
none |
none |
1979: 6 boats 1985: 6 boats |
Technical data
| Displacement standard, t | 57 |
|---|---|
| Displacement full, t | 67 |
| Length, m | 25.5 |
| Breadth, m | 6.18 |
| Draught, m | 1.24 |
| No of shafts | 4 |
| Machinery | 4 M-50FTK diesels |
| Power, h. p. | 6000 |
| Max speed, kts | 43 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1000(14) |
| Armament | 2 x 2 - 25/80 2M-3M, 2 x 1 - 533 TT or 18 mines, 8 DC |
| Electronic equipment | Zarnitsa radar |
| Complement | 14 |
Standard scale images
No 88 1965
Graphics
No 88 1970
Project history
Former Soviet Project 183 fast attack craft.
Modernizations
None.
Naval service
No significant events.
