DJČ105 landing craft (1983-1985/1991)





106 1998

Ships


Names Builders Commissioned Losses Transfers Discarding

105 (ex-ДJЧ623 [DJČ623])

106 (ex-ДJЧ624 [DJČ624])

Greben, Vela Luka, Yugoslavia: 105, 106

1983-1985 // 1991: 105, 106

none

none

1999: 105

in service (2020): 106



Technical data


Displacement standard, t
Displacement full, t

48

Length, m22.3
Breadth, m4.84
Draught, m1.07 hull 1.58 propellers
No of shafts2 waterjets
Machinery2 MTU diesels
Power, h. p.1740
Max speed, kts30
Fuel, tdiesel oil
Endurance, nm(kts)320(22)
Armament

2 x 1 - 20/90 M-71, 1 x 1 - 30/10 PB-30 grenade launcher

Military load

40 troops or 15t cargo

Electronic equipmentDecca 101 radar
Complement8


Graphics

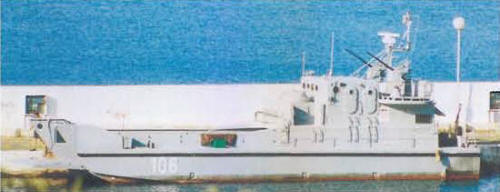

<i>106 </i>1998
106 1998


Project history

Type 22. GRP construction. 32m² cargo area and bow ramp. Captured by Croatia during civil war.

Modernizations

None.

Naval service

No significant events.
