SVETI MIHOVIL patrol boats (2008-2011)
Sveti Nikola Tavelič 2014
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P101 Sveti Mihovil P102 Sveti Nikola Tavelič P103 Josip Jovič P104 Mile Blaževič Čado |
Greben, Vela Luka: P101-104 |
2008-2011: P101-104 |
none |
none |
in service (2020): P101-104 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 90 |
| Length, m | 24.7 |
| Breadth, m | 6.20 |
| Draught, m | 1.70 |
| No of shafts | 2 |
| Machinery | 2 MTU 16V2000 M70 diesels |
| Power, h. p. | 2900 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 300(22) |
| Armament | small arms |
| Electronic equipment | radar |
| Complement | 7 |
Graphics

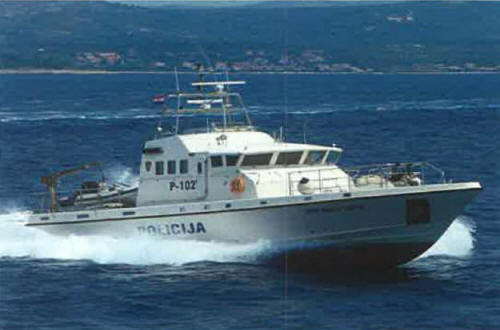

Sveti Nikola Tavelič 2014
Project history
Police.
Modernizations
None.
Naval service
No significant events.
