MARINO JAKOMINIČ patrol boat (2012)
Marino Jakominič 2014
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P105 Marino Jakominič |
Tehnomont, Pula: P105 |
2012: P105 |
none |
none |
in service (2020): P105 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 58 |
| Length, m | 25.1 |
| Breadth, m | 6.00 |
| Draught, m | 1.20 |
| No of shafts | 2 |
| Machinery | 2 MTU 16V2000 M70 diesels |
| Power, h. p. | 2900 |
| Max speed, kts | 29 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 600(25) |
| Armament | small arms |
| Electronic equipment | radar |
| Complement | 7 |
Graphics

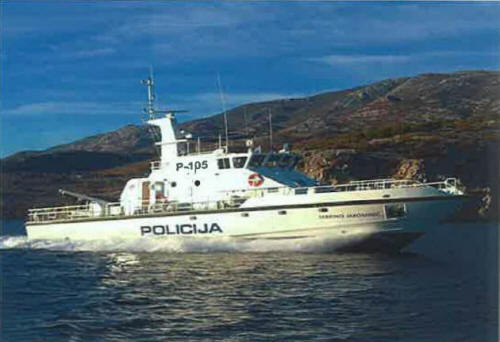

Marino Jakominič 2014
Project history
Police.
Modernizations
None.
Naval service
No significant events.
