VUKOVAR fast attack craft (missile) (1985-1986/2008)

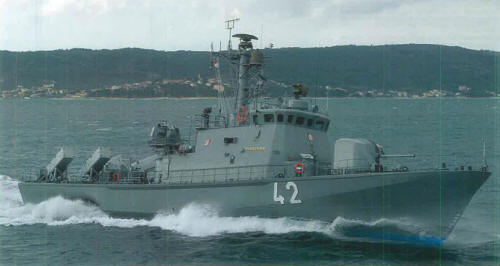

Dubrovnik 2009
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Vukovar (ex-Oulu) | 41 | 468 | Wärtsilä, Helsinki, Finland | 1985 | 1.10.1985 // 13.10.2008 | in service (2020) | |
| Dubrovnik (ex-Kotka) | 42 | 469 | Wärtsilä, Helsinki, Finland | 16.6.1986 // 13.10.2008 | in service (2020) |
Technical data
| Displacement standard, t | 250 |
|---|---|
| Displacement full, t | 280 |
| Length, m | 45.0 |
| Breadth, m | 8.90 |
| Draught, m | 3.00 propellers |
| No of shafts | 3 |
| Machinery | 3 MTU 16V538 TB92 diesels |
| Power, h. p. | 12000 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) |
|
| Armament | 2 x 4 RBS-15SF SSM (8 RBS-15SF3), 2 x 6 Sako SAM (12 Mistral) or 2 x 2 - 23/87 Sako, 1 x 1 - 57/70 Bofors SAK-1, 2 DCR (6), mines instead of SSMs and DCRs |
| Electronic equipment | Raytheon, 9GA208, 9LV225 radars, EOS-400 e/o system, SS304, SONAC-PTA (instead of 1 x 4 RBS-15SF SSM) sonars, Argo ECM suite, 2x Philax decoy RL, 9LV Mk 2.3 CCS |
| Complement | 30 |
Standard scale images
Vukovar 2010
Graphics
Dubrovnik 2009
Project history
Former Finnish Helsinki-class craft. Aluminium hull. Re-commissioned 26.1.2009.
Modernizations
None.
Naval service
No significant events.
