ŠIBENIK fast attack craft (missile) (1977/1991)

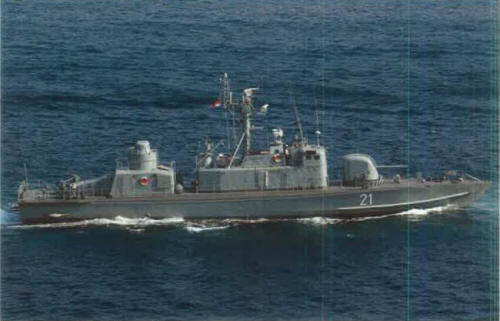

Šibenik 2006

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Šibenik (ex-Владо Четковић [Vlado Četkovič]) 21   Tito, Kraljevica   25.8.1977 1977 // 1991 captured by Croatia 1991 (Šibenik)


Technical data


Displacement standard, t240
Displacement full, t

270
Length, m

45.0
Breadth, m

8.40
Draught, m

1.80 hull 2.50 propellers
No of shafts

4
Machinery

CODAG: 2 Rolls-Royce Proteus gas turbines + 2 MTU 20V538 TB92 diesels
Power, h. p.

9000+7200=16200
Max speed, kts

40
Fuel, t

diesel / gas turbine oil
Endurance, nm(kts)

1650(15)
Armament

2 x 1 P-21 Termit SSM (2 P-21), 1 x 1 - 57/70 SAK-57 Mk 1, 1 x 6 - 30/54 AK-630
Electronic equipment

Decca 1226, 9LV200 Mk 2 radars, 2x Barricade decoy RL
Complement

30


Standard scale images


<i>Šibenik</i> 2000
Šibenik 2000


Graphics


<i>Šibenik </i> 2006
Šibenik 2006


Project history

Former Yugoslavian Rade Končar class fast attack craft, captured during civil war.

Modernizations

1994: - 2 x 1 P-21 Termit SSM; + 2 x 1 RBS-15 SSM (2 RBS-15)

2008: + Sperry Bridgemaster radar

Naval service

No significant events.
