OMIŠ patrol craft (2018-)





Omiš 2018

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Omiš 31   Brodosplit, Split 9.2015 3.6.2017 7.12.2018 in service (2020)
ii 32   Brodosplit, Split     2021 building (2020)
iii 33   Brodosplit, Split     2022 ordered (2020)
iv 34   Brodosplit, Split     2022 ordered (2020)
v 35   Brodosplit, Split     2023 ordered (2020)


Technical data


Displacement standard, t220
Displacement full, t
Length, m

43.3
Breadth, m
Draught, m
No of shafts

2
Machinery

2 Caterpillar diesels
Power, h. p.

6860
Max speed, kts

28
Fuel, t

diesel oil
Endurance, nm(kts)
Armament

1 x 1 Strela-3M SAM (4 9K34), 1 x 1 - 30/80 SMASH, 2 x 1 - 12.7/90
Electronic equipment

2x radars
Complement

16


Graphics

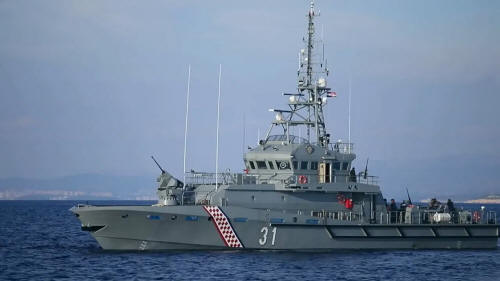

<i>Omiš </i>2018
Omiš 2018


Project history

Project OOB-31, intended for patrol, search and rescue and EEZ protection duties. Serve in Coast Guard.

Modernizations

None.

Naval service

No significant events.
