TELAMANCA patrol launches (1986)
Telamanca 2000
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
SP361 Telamanca, 2001- 36-1 Puerto Quepos SP362 Cariari |
Swiftships, Morgan City, USA: SP361, 362 |
1986: SP361, 362 |
None |
None |
2001: SP362 in service (2019): 36-1 |
Technical data
| Displacement standard, t | 9 |
|---|---|
| Displacement full, t | 11 |
| Length, m | 10.4 |
| Breadth, m | 3.00 |
| Draught, m | 0.80 |
| No of shafts | 2 |
| Machinery | 2 General Motors DD8240MT diesels |
| Power, h. p. | 500 |
| Max speed, kts | 24 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 250(18) |
| Armament | 1 x 1 - 12.7/90, 1 x 1 - 60/11 mortar |
| Electronic equipment | Raytheon 1900 radar |
| Complement | 4 |
Graphics

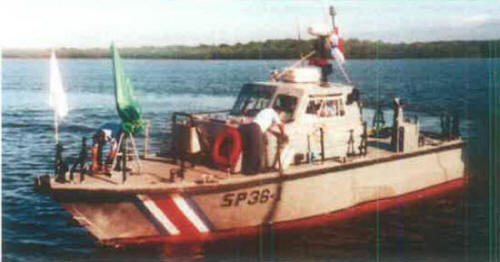

Telamanca 2000
Project history
US 36ft design. Aluminium construction.
Modernizations
None.
Naval service
No significant events.
