TE KUKUPA patrol boat (1989)
Te Kukupa 2007
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Te Kukupa | Transfield ASI, South Coogie, Australia | 5.6.1988 | 27.1.1989 | 1.9.1989 | in service (2020) |
Technical data
| Displacement standard, t | 148 |
|---|---|
| Displacement full, t | 165 |
| Length, m | 28.6 pp 31.5 oa |
| Breadth, m | 8.10 |
| Draught, m | 2.12 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3516 Phase II diesels |
| Power, h. p. | 2820 |
| Max speed, kts | 26 |
| Fuel, t | diesel oil 28 |
| Endurance, nm(kts) | 2500(12) |
| Armament | 1 x 1 - 12.7/90 (fitted for) |
| Electronic equipment | Furuno 1011 radar |
| Complement | 17 |
Graphics

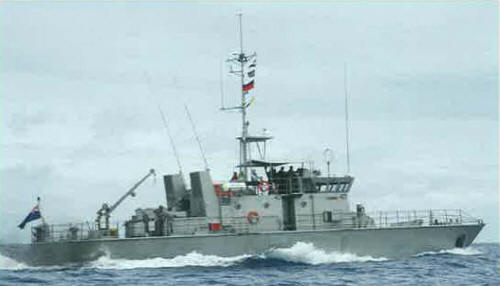

Te Kukupa 2007
Project history
Australian ASI315 design. Carries 5m aluminum boarding boat. Never had central waterjet.
Modernizations
None.
Naval service
No significant events.
