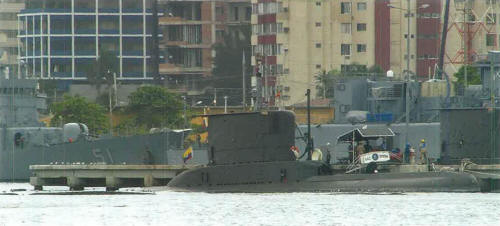

Pijao 2008

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Pijao	SS28		Howaldtswerke, Kiel, West Germany	1.4.1972	10.4.1974	18.4.1975	in service (2019)
Tayrona	SS29		Howaldtswerke, Kiel, West Germany	1.5.1972	16.7.1974	16.7.1975	in service (2019)

Technical data

Displacement standard, t	1000
Displacement full, t	1185 / 1300
Length, m	56.1
Breadth, m	6.20
Draught, m	5.50
No of shafts	1
Machinery	4 MTU 12V493 TY60 diesel-generators, 1 Siemens electric motor
Power, h. p.	2400 / 5000
Max speed, kts	11 / 21
Fuel, t	diesel oil 100
Endurance, nm(kts)	8000(8) (snorkel) / 400(4)
Armament	8 - 533 TT (bow, 14 DM-2A3)
Electronic equipment	Calypso II radar, CSU2-2 sonar suite, PRS3-4 sonar, DR-2000U ECM suite, M8 Mod.24 CCS
Complement	31
Diving depth operational, m	250

Standard scale images

Graphics

Project history

German type 209/1200, modified and enhanced type 209/1100 with less cramped spaces for armament, equipment and crew.

Modernizations

1991, both: - CSU2-2 sonar suite; + CSU3-2 sonar suite

2002, both: - CSU3-2 sonar suite; + PSU83-55 sonar suite

2013, both: - DR-2000U ECM suite, M8 Mod.24 CCS; + UME-100 ECM suite, ISUS-80 CCS

Naval service

No significant events.
