INTRÉPIDO submarines (1974-1975/2012)

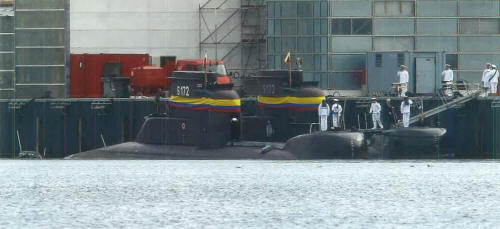

Intrépido 2012 with German pennant number.
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Intrépido (ex-U23) | SS23 | Rheinstahl Nordseewerke, Emden, West Germany | 21.8.1972 | 22.5.1973 | 2.5.1975 // 28.8.2012 | in service (2019) | |
| Indomable (ex-U24) | SS24 | Rheinstahl Nordseewerke, Emden, West Germany | 10.7.1972 | 26.6.1973 | 16.10.1974 // 28.8.2012 | in service (2019) |
Technical data
| Displacement standard, t |
|
|---|---|
| Displacement normal, t | 450 / 500 |
| Length, m | 48.6 |
| Breadth, m | 4.60 |
| Draught, m | 4.30 |
| No of shafts | 1 |
| Machinery | 2 MTU 12V493AZ diesel-generators, 1 electric motor |
| Power, h. p. | 1200 / 2300 |
| Max speed, kts | 10 / 17 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3950(4) / 200(5) |
| Armament | 8 - 533 TT (bow, 8 or 16 mines), 24 mines in side containers |
| Electronic equipment | Calypso II radar, DBQS-21D sonar suite, DUUX-2 sonar, DR-2000U, SARIE-2 ECM suites, SLW-83 CCS |
| Complement | 21 |
| Diving depth operational, m | 150 |
Standard scale images
Intrépido 2015
Graphics
Intrépido 2012 with German pennant number.
Project history
Former type 206A submarines of Bundesmarine. Commissioned after refit 12.12.2015.
Modernizations
None.
Naval service
No significant events.
