RÍOHACHA river gunboats (1956)





Río Hacha 1966

Ships


Name

No

Yard No

Builder

Laid down

Launched

Comp

Fate

Ríohacha

CF35, 1995- PF135



Union Industrial de Barranquilla



1955

9/1956

stricken 2017-18

Leticia

CF36, 1995- PF136



Union Industrial de Barranquilla



1955

9/1956

hospital ship ~1970

Arauca

CF37, 1995- PF137



Union Industrial de Barranquilla



1955

9/1956

in service (2019)



Technical data


Displacement standard, t

170

Displacement full, t

184

Length, m

47.25 pp 49.8 oa

Breadth, m

8.23

Draught, m

1.00

No of shafts

2

Machinery

2 Caterpillar diesels

Power, h. p.

916

Max speed, kts

13

Fuel, t

diesel oil

Endurance, nm(kts)

1000(12)

Armament

2 x 1 - 76/50 Mk 26, 4 x 1 - 20/70 Mk 10

Complement

43



Graphics

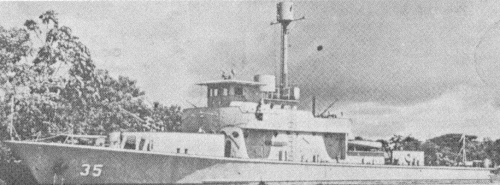

<i>Río Hacha </i> 1966
Río Hacha 1966

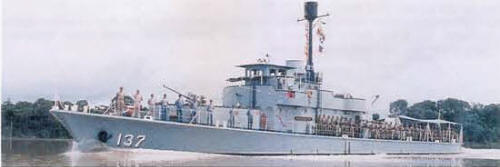

<i>Arauca </i>1991
Arauca 1991


Project history

Small river gunboats for Río Putumayo. Don't have the radar.

Modernizations

2010s, Arauca: - 2 x 1 - 76/50; + 1 x 1 - 40/60 Mk 3, 4 x 1 - 12.7/90, radar

Naval service

Leticia, serving as hospital ship and disarmed, kept the hull number of gunboat.
