PEDRO GUAL patrol craft (1964)
Pedro Gual 1975
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
AN204 Pedro Gual AN205 Esteban Jaramillo AN206 Carlos E. Restrepo |
Schurenstedt KG, Barden Fleth, West Germany: AN204-206 |
1964: AN204-206 |
none |
none |
1984: AN204, 205 1986: AN206 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 85 |
| Length, m | 32.9 |
| Breadth, m | 5.50 |
| Draught, m | 1.80 |
| No of shafts | 2 |
| Machinery | 2 Maybach diesels |
| Power, h. p. | 2450 |
| Max speed, kts | 26 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) |
|
| Armament | 1 x 1 - 20/70 Mk 10 |
| Electronic equipment | radar |
| Complement |
Graphics

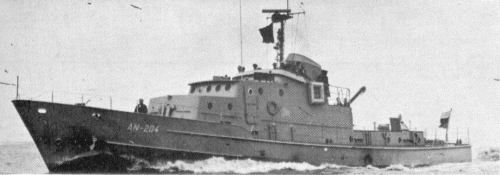

Pedro Gual 1975
Project history
Fast patrol craft.
Modernizations
None.
Naval service
No significant events.
