SSCIM. SENEN ALBERTO ARAUJO river patrol craft (2000-2009)

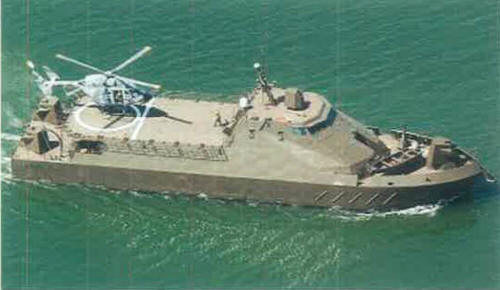

TEFIM. Juan Ricardo Oyola Vera 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate | Modification |
|---|---|---|---|---|---|---|---|---|
| SSCIM. Senen Alberto Araujo | NF147, 2000- NF607 | Boca Grande, Cartagena | 9.1998 | 19.4.2000 | in service (2019) | RAF-PI | ||
| CPCIM. Guillermo Londoño Vargas | NF146, 2000- NF608 | Boca Grande, Cartagena | 6.1998 | 3.2000 | in service (2019) | RAF-PI | ||
| TNCIM. Mario Alonso Villegas | NF610 | COTECMAR, Cartagena | 2003 | in service (2019) | RAF-PII | |||
| TECIM. Tony Pastrana Contreras | NF611 | COTECMAR, Cartagena | 2004 | in service (2019) | RAF-PIII | |||
| CTCMI. Jorge Moreno Salazar | NF612 | COTECMAR, Cartagena | 2005 | in service (2019) | RAF-PIV | |||
| TEFIM. Juan Ricardo Oyola Vera | NF613 | COTECMAR, Cartagena | 2006 | in service (2019) | RAF-PIV | |||
| TECIM. Freddy Alexander Pérez Rodríguez | NF614 | COTECMAR, Cartagena | 2008 | in service (2019) | RAF-PIV | |||
| TECIM. Edic Cristian Reyes Holguín | NF615 | COTECMAR, Cartagena | 25.3.2009 | in service (2019) | RAF-PIV |
Technical data
| Displacement standard, t | RAF-I, II: 230 RAF-III, IV: 275 |
|---|---|
| Displacement full, t | RAF-I, II: 260 RAF-III, IV: 373 |
| Length, m | RAF-I, II: 37.2 pp 38.5 oa RAF-III, IV: 40.3 |
| Breadth, m | 9.50 |
| Draught, m | RAF-I, II: 1.00 RAF-III, IV: 1.26 |
| No of shafts | RAF-I, II: 2 RAF-III, IV: 2 waterjets |
| Machinery | RAF-I, II: 2 General Motors Detroit Diesel diesels RAF-III, IV: 2 MTU diesels |
| Power, h. p. | RAF-I, II: 880 RAF-III, IV: 900 |
| Max speed, kts | RAF-I, II: 12 RAF-III, IV: 9 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | RAF-III, IV: 2900 |
| Armour, mm | side below wl: 80 |
| Armament | RAF-I: 8 x 1 - 12.7/90 RAF-II: 8 x 1 - 12.7/90, 1 x 1 - 40/19 grenade launcher RAF-III: 3 x 1 - 12.7/90, 4 x 1 - 7.6/90, 1 x 1 - 40/19 Mk 19 grenade launcher RAF-IV: 3 x 1 - 12.7/90, 4 x 1 - 7.6/90, 1 x 1 - 40/19 Mk 19 grenade launcher, helicopter deck |
| Electronic equipment | RAF-I, II: radar RAF-II, III, IV: radar, e/o system, Jeyur CCS |
| Complement | RAF-I, II: 18 + 82 troops RAF-III, IV: 33 + 39 troops |
Standard scale images
TEFIM. Juan Ricardo Oyola Vera 2010
Graphics
TEFIM. Juan Ricardo Oyola Vera 2008
Project history
Nodriza class, intended to provide afloat logistic support to riverine forces, can carry 4 Piranha class launches.
Modernizations
None.
Naval service
No significant events.
