NAVYPEDIA


Pinillos 2012

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
PRF303 Rio Magdalena PRF304 Rio Orinoco PRF314 Rio Atrato PRF315 Rio Baudo PRF316 Rio San Juan PRF317 Rio Patia PRF318 Rio Guaviare PRF319 Rio Amazonas PRF323 Rio Sinú PRF324 Rio Meta PRF325 Rio Cusiana PRF326 Rio Vichada PRF327 Rio Caguan PRF328 Arica PRF329 Angostura PRF330 Pinillos	COTECMAR, Cartagena: PRF303, 304, 314-319, 323-330	2009: PRF328-330 2014: PRF314-317 2016: PRF303, 304, 318, 319, 323, 324, 326 2017: PRF325, 327	none	none	in service (2019): PRF303, 304, 314-319, 323-330

Technical data

Displacement standard, t
Displacement full, t	14
Length, m	12.7
Breadth, m	2.80
Draught, m	0.70
No of shafts	2 waterjets
Machinery	2 Caterpillar C9 diesels
Power, h. p.	505
Max speed, kts	29
Fuel, t	diesel oil
Endurance, nm(kts)	513(25)
Armament	PRF328-330: 3 x 1 - 12.7/90, 2 x 1 - 7.6/90 others: 4 x 1 - 12.7/90, 2 x 1 - 7.6/90
Electronic equipment	Raytheon R70 radar
Complement	4 + 10 troops

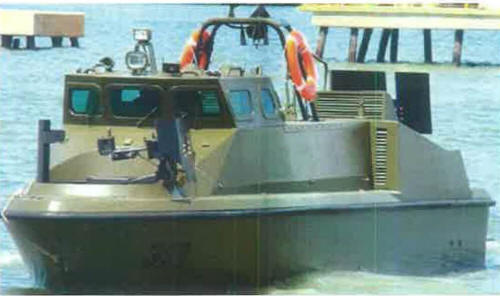

Graphics

Project history

LPR-40 class, designed by COTECMAR. Aluminium construction, transportable on a C-130 aircraft.

Modernizations

None.

Naval service

No significant events.
