OLAYA HERRERA patrol boats (1981-1983)

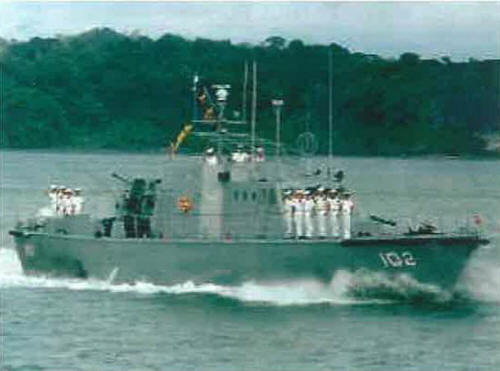

Rafael del Castillo y Rada 1999
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Olaya Herrera, 1997- TECIM Jaime E. Cárdenas Gómez | AN21, 1997- GC115, 1999- PM115 | Swiftships, Berwick, USA | 16.10.1981 | in service (2019) | |||
| C. N. Rafael del Castillo y Rada | GC102, 1999- PM102 | Swiftships, Berwick, USA | 28.2.1983 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 103 |
| Length, m | 29.2 pp 32.0 oa |
| Breadth, m | 6.69 |
| Draught, m | 2.14 |
| No of shafts | 4 |
| Machinery | 4 MTU 12V331 TC92 diesels |
| Power, h. p. | 7000 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2400(15) |
| Armament | 1 x 1 - 40/60 Mk 3, 2 x 1 - 12.7/90 |
| Electronic equipment | Raytheon radar, COAR e/o system |
| Complement | 19 |
Graphics
Rafael del Castillo y Rada 1999
Project history
US Swiftships 105ft Commercial Cruiser class.
Modernizations
None.
Naval service
Olaya Herrera was paid off but returned unarmed as part of Customs service and later transferred back to the Coast Guard.
