JORGE SOTO DEL CORVAL patrol craft (1971)
Carlos Alban 1971
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Jorge Soto del Corval | AN207 | Laivateollisuus, Turku, Finland | 1971 | stricken 1984 | |||
| Carlos Alban | AN208 | Laivateollisuus, Turku, Finland | 1971 | stricken 1984 | |||
| Nito Restrepo | AN209 | Laivateollisuus, Turku, Finland | 1971 | stricken 1990 |
Technical data
| Displacement standard, t | 110 |
|---|---|
| Displacement full, t | 130 |
| Length, m | 33.0 |
| Breadth, m | 6.00 |
| Draught, m | 1.90 |
| No of shafts | 2 |
| Machinery | 2 MTU diesels |
| Power, h. p. | 2500 |
| Max speed, kts | 17 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 20/70 Mk 7 |
| Electronic equipment | radar |
| Complement |
Standard scale images
similar Ruissalo 1980
Graphics

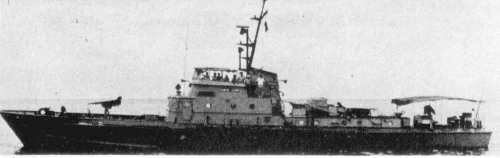

Carlos Alban 1971
Project history
Finnish Ruissalo class without ASW abilities. Customs.
Modernizations
None.
Naval service
No significant events.
1971
