COLOMBIA
COASTAL FORCES
ESPARTANA patrol craft (1989/1995)
Espartana 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Espartana (ex-Cormorán) | GC41, 1999- PO41 | Bazán, Ferrol, Spain | 10.1985 | 28.12.1989 // 5.3.1995 | stricken 2012 |
Technical data
| Displacement standard, t | 300 |
|---|---|
| Displacement full, t | 374 |
| Length, m | 55.6 |
| Breadth, m | 7.59 |
| Draught, m | 1.97 hull |
| No of shafts | 3 |
| Machinery | 3 MTU-Bazán 16V956 TB91 diesels |
| Power, h. p. | 13500 |
| Max speed, kts | 33 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2000(15) |
| Armament | 1 x 1 - 40/70 Bofors 350, 1 x 1 - 20/70 Mk 10 |
| Electronic equipment | Raytheon 1620 radar, Alcor-C e/o director |
| Complement | 32 |
Graphics

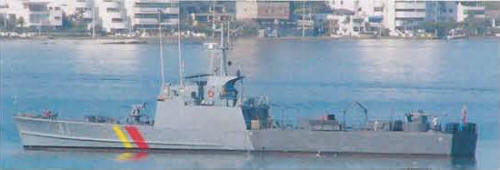

Espartana 2008
Project history
Launched as a speculation. Taken over by Spanish Navy in 1989 as testbed and patrol vessel but was decommissioned in 1994 and returned to builder. Later was purchased by Colombia.
Modernizations
None.
Naval service
No significant events.
2008
