CAPITÁN PABLO JOSÉ DE PORTO patrol craft (1976-1977/1997)

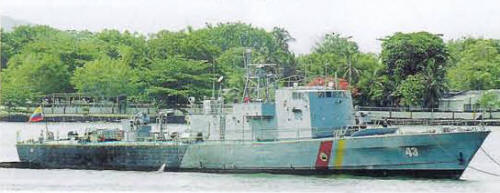

CTCIM Jorge Enrique Márquez Duran 2001
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Capitán Pablo José de Porto (ex-Recalde) | GC42, 1999- PO42 | Bazán, La Carraca, Spain | 24.5.1975 | 9.11.1975 | 17.12.1977 // 6.1997 | stricken 2009 | |
| CTCIM Jorge Enrique Márquez Duran (ex-Cadarso) | GC43, 1999- PO43 | Bazán, La Carraca, Spain | 24.5.1974 | 8.1.1975 | 10.7.1976 // 6.1997 | stricken 2011 |
Technical data
| Displacement standard, t | 275 |
|---|---|
| Displacement full, t | 397 |
| Length, m | 54.4 pp 58.1 oa |
| Breadth, m | 7.60 |
| Draught, m | 2.70 |
| No of shafts | 2 |
| Machinery | 2 MTU-Bazán MA-16V956 TB91 diesels |
| Power, h. p. | 7780 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil 112 |
| Endurance, nm(kts) | 4200(17) |
| Armament | 1 x 1 - 40/70 Bofors 350, 1 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90 |
| Electronic equipment | Raytheon 1620/6, Furuno radars, CSEE e/o director |
| Complement | 30 |
Standard scale images
CTCIM Jorge Enrique Márquez Duran 1980
Graphics
CTCIM Jorge Enrique Márquez Duran 2001
Project history
Ordered in 1972 to Spanish Navy to the basic Lürssen T57 design. Purchased in June 1997 and handed over 9.9.1998. During refits new radars were provided, 76mm gun was removed.
Modernizations
None.
Naval service
No significant events.
