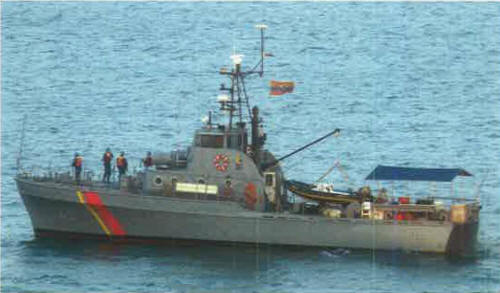

Cabo Tiburón 2009

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
PC141 Cabo Corrientes (ex-Point Warde, ex-WPB82368) PC142 Cabo Manglares (ex-Point Wells, ex-WPB82343) PC143 Cabo Tiburón (ex-Point Estero, ex-WPB82344) PC144 Cabo de la Vela (ex-Point Sal, ex-WPB82352)	Martinac SB, Tacoma, USA: PC141, 144 USCG Yard, Curtis Bay, USA: PC142, 143	1963 // 2000: PC142 1967 // 2000: PC141 1963 // 2001: PC143 1966 // 2001: PC144	none	none	in service (2019): PC141-144

Technical data

Displacement standard, t	64
Displacement full, t	69
Length, m	25.3
Breadth, m	5.20
Draught, m	1.80
No of shafts	2
Machinery	2 Caterpillar 3412 V12 diesels
Power, h. p.	1600
Max speed, kts	23
Fuel, t	diesel oil 6
Endurance, nm(kts)	1500(8)
Armament	2 x 1 - 12.7/90
Electronic equipment	SPS-64(v)1 radar
Complement	10

Standard scale images

Graphics

Project history

Former coastal USCG patrol boats of Point class.

Modernizations

None.

Naval service

No significant events.
