TECIM. ALEJANDRO LEDESMA ORTIZ river patrol boats (2010)
TECIM. Alejandro Ledesma Ortiz 2010
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| TECIM. Alejandro Ledesma Ortiz | NF616 | COTECMAR, Cartagena | 25.8.2010 | in service (2019) | |||
| Harrys Tous Castaño | NF617 | COTECMAR, Cartagena | 21.11.2010 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 115 |
| Length, m | 30.0 |
| Breadth, m | 7.00 |
| Draught, m | 0.75 |
| No of shafts | 2 waterjets |
| Machinery | 2 Caterpillar C12 diesels |
| Power, h. p. | 640 |
| Max speed, kts | 9 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 840(8) |
| Armour, mm | turrets |
| Armament | 2 x 1 - 12.7/90, 2 x 1 - 7.6/90, 2 x 1 - 40/19 Mk 19 grenade launchers |
| Electronic equipment | radar |
| Complement | 33 + 28 troops |
Graphics

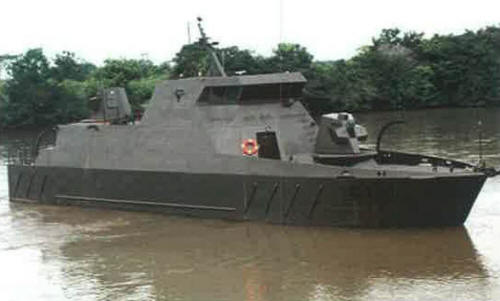

TECIM. Alejandro Ledesma Ortiz 2010
Project history
Heavy small weapons fit optimized for riverine operations.
Modernizations
None.
Naval service
No significant events.
