CHANGZHENG 7 nuclear-powered submarines (project 093, 093A, 093B, 2006-2016)

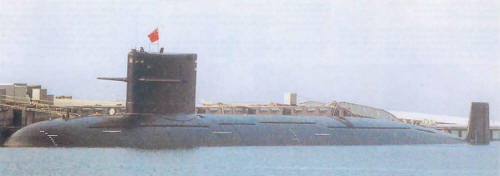

2007
Ships
| Name | No | Builder | Laid down | Launched | Comp | Fate | Modification |
|---|---|---|---|---|---|---|---|
| 长征7号 [Changzheng 7] | 407 | Bohai, Huludao | 24.12.2002 | 12/2006 | in service (2019) | Type 093 | |
| 长征8号 [Changzheng 8] | 408 | Bohai, Huludao | 12/2003 | 8.3.2007 | in service (2019) | Type 093 | |
| 长征9号 [Changzheng 9] | 409 | Bohai, Huludao | 2010 | 2012 | in service (2019) | Type 093A | |
| 长征10号 [Changzheng 10] | 410 | Bohai, Huludao | 2013 | 2015 | in service (2019) | Type 093A | |
| 长征18号 [Changzheng 18] | 418 | Bohai, Huludao | 2017 | in service (2019) | Type 093A | ||
| 长征19号 [Changzheng 19] | 419 | Bohai, Huludao | 2017 | in service (2019) | Type 093A | ||
| 长征15号 [Changzheng 15] | 415 | Bohai, Huludao | 2015 | in service (2019) | Type 093B | ||
| 长征16号 [Changzheng 16] | 416 | Bohai, Huludao | 2015 | in service (2019) | Type 093B | ||
| 长征17号 [Changzheng 17] | 417 | Bohai, Huludao | 2015 | in service (2019) | Type 093B |
Technical data
| Displacement standard, t |
|
|---|---|
| Displacement normal, t | 5000 / 6100 |
| Length, m | type 093, 093A: 107.0 type 093B: 110.0 |
| Breadth, m | 11.0 |
| Draught, m | 7.50 |
| No of shafts | type 093, 093A: 1 type 093B: 1 pumpjet |
| Machinery | 2 sets geared steam turbines, 2 nuclear reactors |
| Power, h. p. | 20000 |
| Max speed, kts | 20 / 30 |
| Fuel, t | nuclear |
| Endurance, nm(kts) | practically unlimited |
| Armament | type 093, 093A: 1 x 12 YJ-18 SSM / CJ-10 CruM (VLS, 12 YJ-18 / CJ-10), 6 - 533 TT (bow, 20 (inc. YJ-82 SSM / YJ-83 SSM) or 36 mines) type 093B: 1 x 24 YJ-18 SSM / CJ-10 CruM (VLS, 24 YJ-18 / CJ-10), 6 - 533 TT (bow, 20 (inc. YJ-82 SSM / YJ-83 SSM) or 36 mines) |
| Electronic equipment | type 359 radar, H/SQG-4 sonar suite (TSM2233 Eledone, TSM-2255, SQB-2 sonars), H/SQC-207 sonar, Type 921-A (SRW209) ECM suite, CCS |
| Complement | 100 |
| Diving depth operational, m | 400 |
Standard scale images
Changzheng 7 2010
Graphics
2007
Project history
Replacement for the type 091, designed with active Russian assistance. Initially it was planned to limit number of ships in class by 3 in favor of newest type 095, but later it was decided to increase class to 8, including VLS-carrying type 093B. Double-hulled, hull is covered by anechoic tiles. Majority of sources report that type 093A and 093B submarines are equivalent to Improved Los Angeles by noise level or quieter.
Modernizations
None.
Naval service
No significant events.
