WU FENG gunboat (1912)





Wu Feng 1921

Ships


Name No Yard No Builder Laid down Launched Comp Fate
五峰 [Wu Feng]     Tsingtao DYd 1911 1912 1912 patrol 1922, scuttled 11.8.1937


Technical data


Displacement normal, t200
Displacement full, t
Length, m37.8
Breadth, m6.10
Draught, m2.10
No of shafts1
Machinery1 VTE, 1 cylindrical boiler
Power, h. p.300
Max speed, kts10
Fuel, tcoal 30
Endurance, nm(kts)
Armament4 x 1 - 47/40 Hotchkiss
Complement46


Graphics

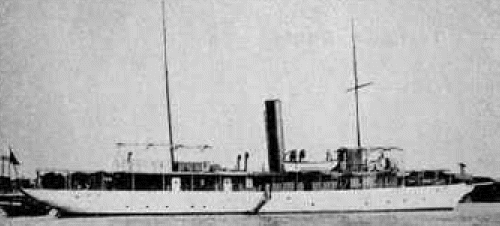

<i>Wu Feng </i> 1921
Wu Feng 1921


Project history

Built in 1911-1912 under order of Marine ministry as admiral yacht for Northern fleet.

Modernizations

1922: - 4 x 1 - 47/40; + 2 x 1 - 65/50 Schneider-Canet M1902

Naval service

Since the end of 1920s she was used as patrol. 29.9.1937 Wu Feng was sunk by aircraft from carriers Ryujo and Hosho at Canton (Guangzhou).
